Thread together design using wing or hex nut allows connection pressures 750psi quick coupling

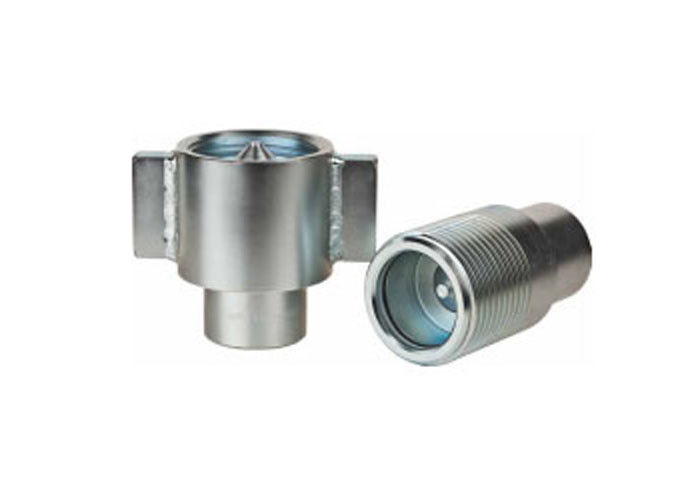

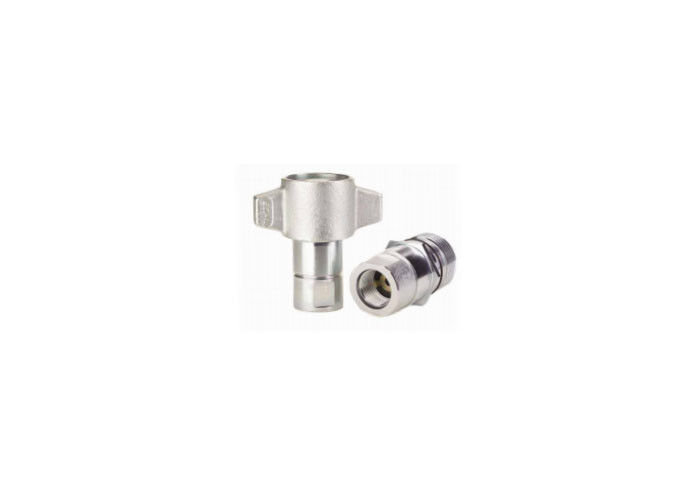

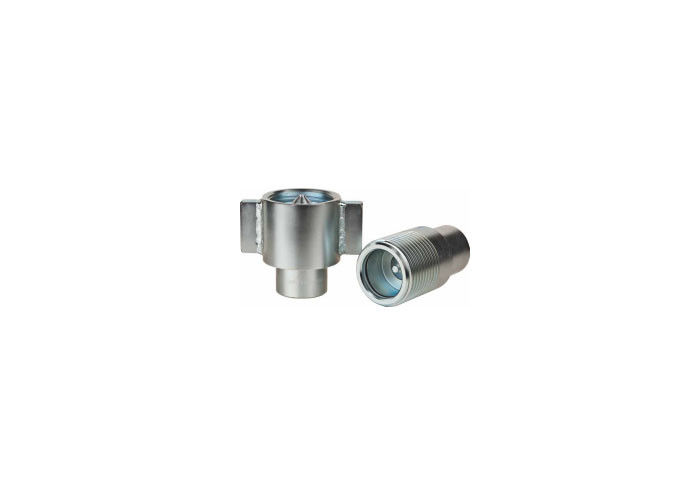

1 Inch 750psi Threaded Quick Connect , Hydraulic Quick Release Coupling
CB-5-G Seriesi s available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size)The Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi.
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1" | CB-S8S-5FN-G | 1-11 1/2 | 4.98 | 4.50 | - |
| 1" | CB-S8S-5FN-G | 1-11 1/2 | 4.98 | 2.81 | 1.62 |
| 1" | CB-P8S-5FN-G | 1-11 1/2 | 4.40 | 2.11 | 1.75 |
