CB-HYDRAV-KD Threaded Dry-Break Hydraulic Coupler for Aviation Ground Systems – Carterberg

CB-HYDRAV-KD is a threaded hydraulic quick coupler designed for high-integrity connections in critical aerospace ground support systems. Featuring a vibration-resistant locking sleeve and dry-break valve architecture, it prevents fluid spillage and ensures secure operation under pressure.

Unlike traditional push-to-connect systems, the CB-HYDRAV-KD uses a rapid screw-in sleeve with integrated safety ring, making it especially suited for applications where anti-loosening is mandatory—such as aircraft testing benches and mission-critical mobile hydraulic units.

Key Features

• Threaded Sleeve Locking: Quick-connect by screwing the external sleeve, with mechanical lock ring for anti-vibration safety.

• Dry-Break Architecture: Dual shut-off valve system minimizes air inclusion on connection and fluid loss on disconnection.

• EPDM 41B Seals: Compliant with NF L 17-241 standard, compatible with phosphate-ester fluids (e.g., Skydrol®).

• SAE AS 4395 Port Adaptation: Designed to integrate with standard test bench manifolds and aircraft hydraulic ground points.

• Broad Working Range: Pressure rating up to 450 bar / 6525 psi, temperature from -40°C to +150°C.

Technical Specifications

Parameter	Value
Model	CB-HYDRAV-KD
Connection Type	Screw-to-connect with safety locking ring
Valve Type	Double shut-off, dry-break
Seal Material	EPDM 41B (Skydrol-compatible)
Body Material	Anodized Aluminum
Spring & Valve Material	Stainless Steel
Nominal Diameter Options	1/4",3/4",1",1-1/2"
Working Pressure	Up to 450 bar (6525 psi) depending on size
Operating Temperature	-40°C to +150°C
Connection Standard	SAE AS 4395 interface
Spillage on Disconnect	0.18 ml – 1.16 ml (size-dependent)

Dimensional Overview

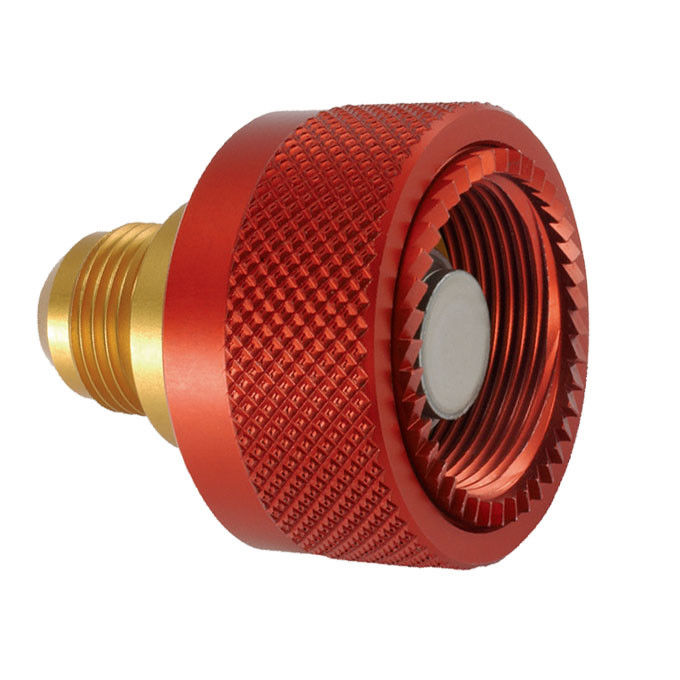

Female (Socket)

Body Size	PARTNO.	A	B	C	HEX
1/4"	CB-S2B-5MU-E	41	39	14	14
3/4"	CB-S6B-5MU-E	49	60	22	33
1"	CB-S8L-5MU-E	79	70	23	48
1"1/2	CB-S10B-5MU-E	91	80	28	54

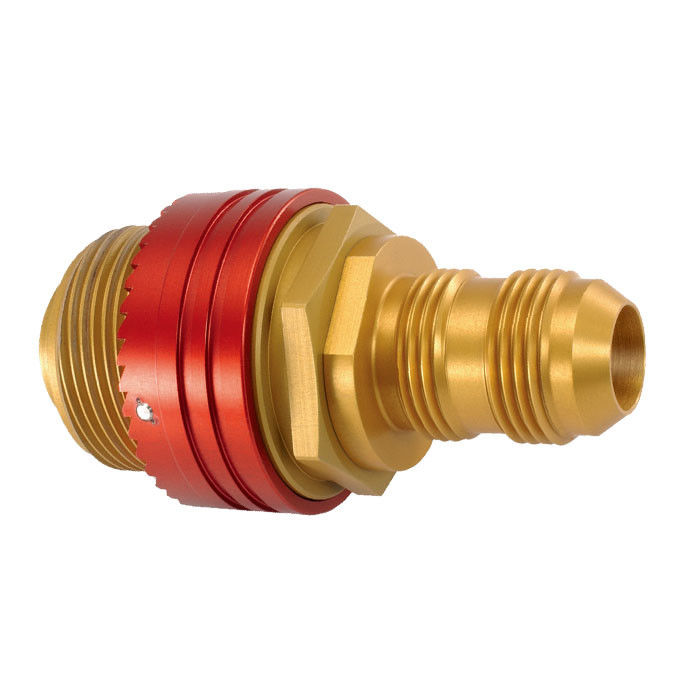

Male (Plug)

Body Size	PARTNO.	D	E	F	HEX
1/4"	CB-P2B-5MU-E	35	25	14	29
3/4"	CB-P6B-5MU-E	61	41	36	41
1"	CB-P8L-5MU-E	73	60	23	54
1"1/2	CB-P10B-5MU-E	81	70	28	70

Application Scenarios

CB-HYDRAV-KD couplings are mainly used in:

• Aircraft Hydraulic Test Benches

• Aviation Ground Maintenance Systems

• Tooling and Panel Interfaces with Anti-Loosening Requirement

• Mobile Equipment Requiring Dry-Break Under Pressure

Why Choose Carterberg’s CB-HYDRAV-KD?

In sectors where failure is not an option—such as aerospace ground control and hydraulic lab testing—CB-HYDRAV-KD stands out for its:

• Enhanced anti-vibration safety via screw sleeve

• Minimal fluid loss and air ingress

• Seal compatibility with aerospace-grade fluids

• Compact, modular design available in multiple sizes
